JFDB-24A Fiber Distribution Box
Price shown is for reference only. Contact us for accurate quotation.
Product Snapshot
- Capacity
- 24 Ports
- Shell Material
- PC+ABS
- Protection Class
- IP65
- Mounting Type
- Wall/Pole mounting
- Dimensions
- 340*270*95mm
- Working Temp
- -45~+65℃
- MOQ
- From 1 piece
Get Factory Pricing
Product Overview
The JFDB-24A Fiber Distribution Box is designed for reliable fiber optic distribution in fiber distribution box applications. Compact 24-port fiber distribution box with multiple splitter options. SMC, IP65, wall or pole mount. Factory direct, OEM/ODM, MOQ from 1.

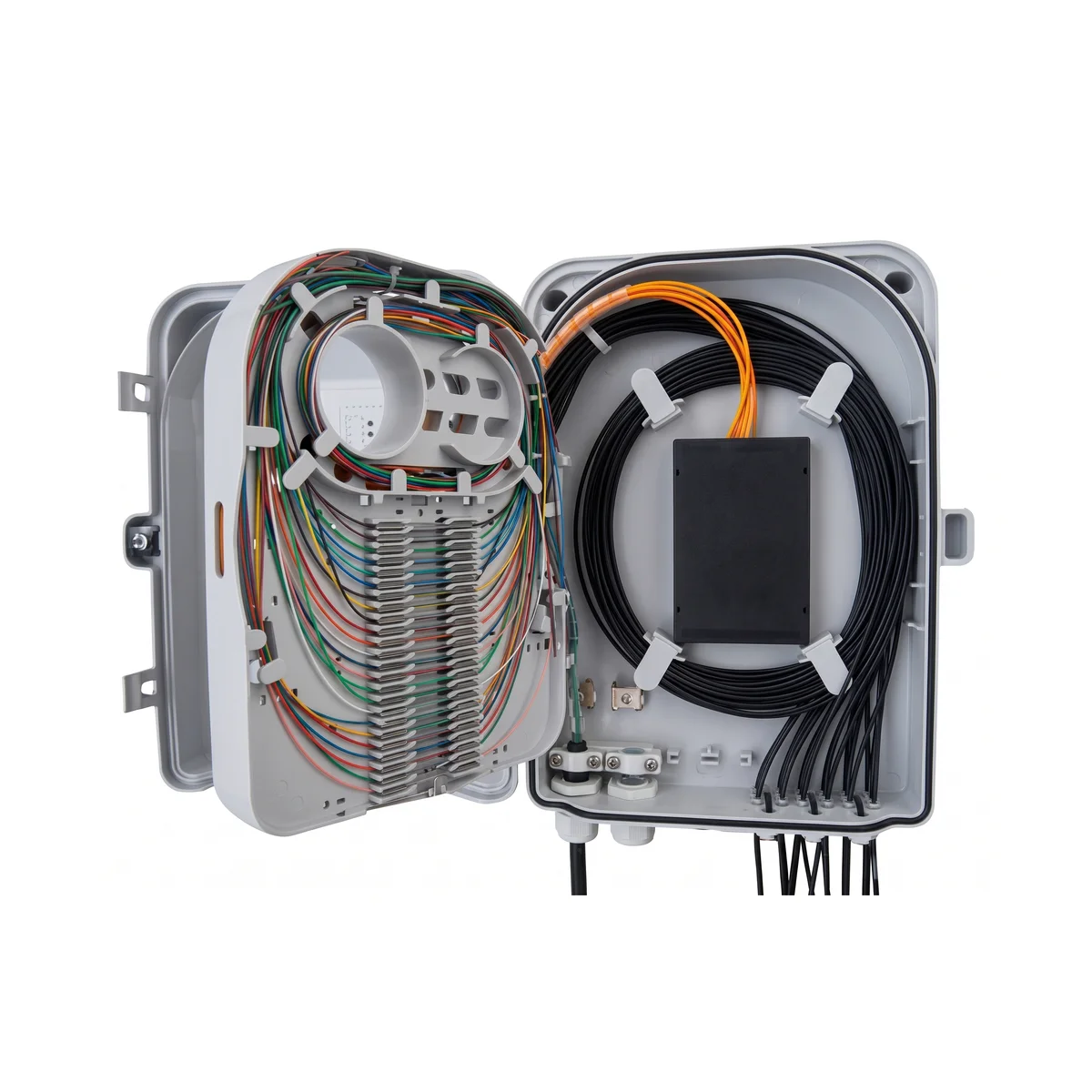

The JFDB-24A is a compact 24-port fiber distribution box built on a lightweight PC+ABS body, designed for 24-port FTTH termination where flexibility in splitter configuration is the priority. At 340x270x95mm it stays slim while supporting both 1x16 and 1x8 PLC splitter configurations.
The PC+ABS material keeps installation quick and light for wall or pole mounting. The defining feature is splitter flexibility: the box supports either a 1x16 or a 1x8 PLC splitter slot, letting operators choose the splitting ratio that matches the subscriber count on each floor.
The IP65 seal protects the interior from water and dust. For mid-size floors that need 24 ports and adaptive splitting, the JFDB-24A is the flexible, lightweight choice.
Features & Benefits
- Easy installation with lighter weight
- LGX splitter slots or pre-terminated type
- High performance PC+ABS materials
- Supports 1x16 or 1x8 PLC splitter configurations
