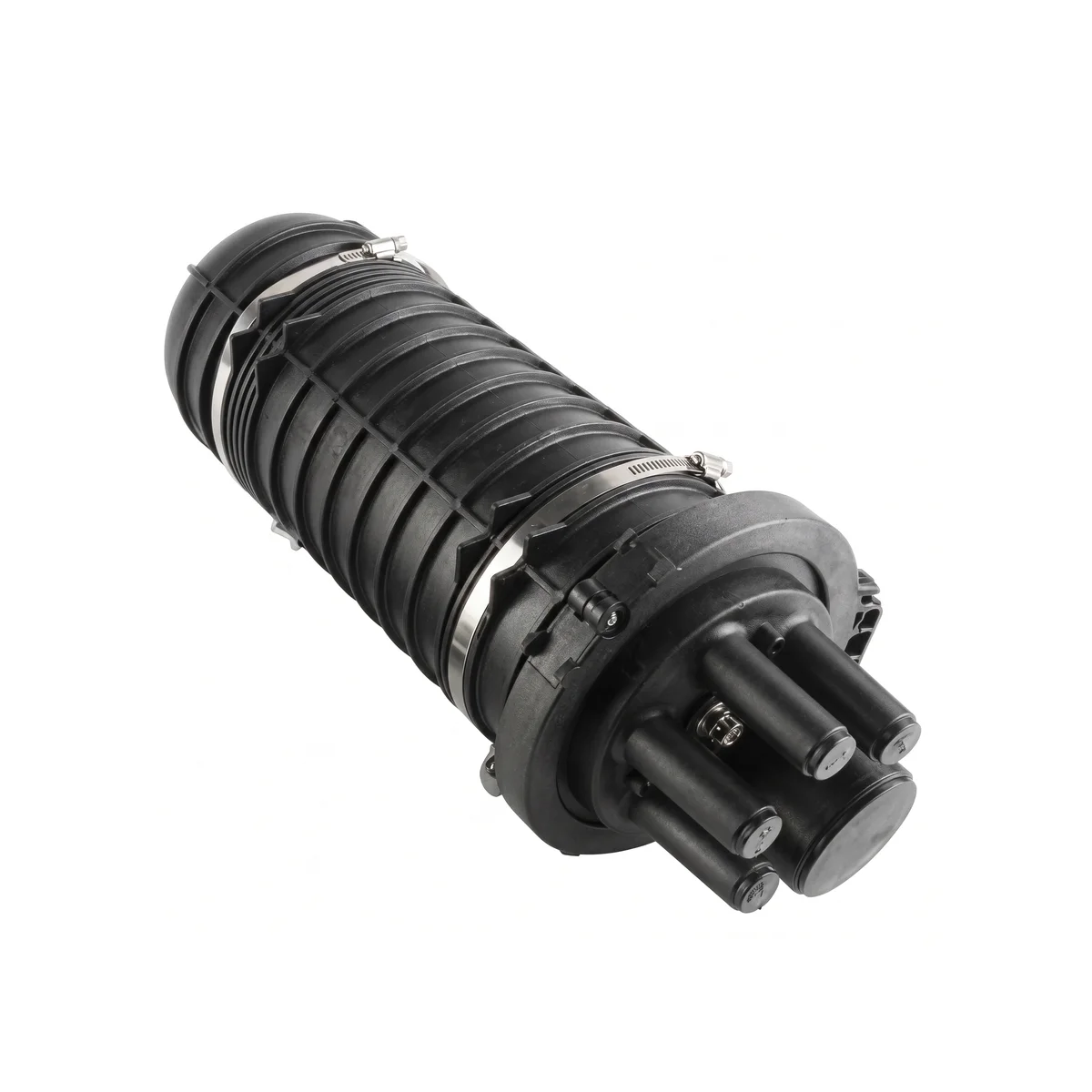

JFSC-L144C Horizontal Fiber Splice Closure
Price shown is for reference only. Contact us for accurate quotation.
Product Snapshot
- Capacity
- 144 Ports
- Material
- PP
- Protection Class
- IP68
- Mounting Type
- Aerial/Duct/Underground
- Dimensions
- 530*205mm
- Working Temp
- -40~+65℃
- MOQ
- From 1 piece
Get Factory Pricing
Product Overview
The JFSC-L144C Horizontal Fiber Splice Closure is designed for reliable fiber optic distribution in fiber splice closure applications. Horizontal fiber splice closure, 144 cores with melt glue sealing. PC, IP68. Aerial, duct, and direct burial. Factory direct, OEM/ODM, MOQ from 1.
The JFSC-L144C is a 144-core horizontal fiber splice closure built on a PP shell with IP68 protection, sealed with melt glue for a permanent, tamper-resistant splice point. At 530x205mm it is a cable-in/cable-out closure engineered for aerial, duct, and direct-burial splicing where the closure does not need repeated opening.
The PP material resists impact, UV, and corrosion, protected to IP68 against dust and submersion. A melt-glue seal provides a solid, factory-style bond between shell and cover, ideal for sealed sections that stay closed for long periods. Clean and easy-to-follow fiber routing keeps the 144 cores organized under the sealed top.
With 5 inlet/outlet ports and cable diameters of 4 to 20mm, it adapts to multiple converging runs. It holds up to 6 splice trays of 24 cores. At 3 to 3.6kg it suits aerial, duct, and buried positions with a working range of -40 to +65 degree C.
Features & Benefits
- Waterproof and dust-proof with IP68 level
- Clean and easy to follow fiber routing
- Easy assembly
- It is reusable
