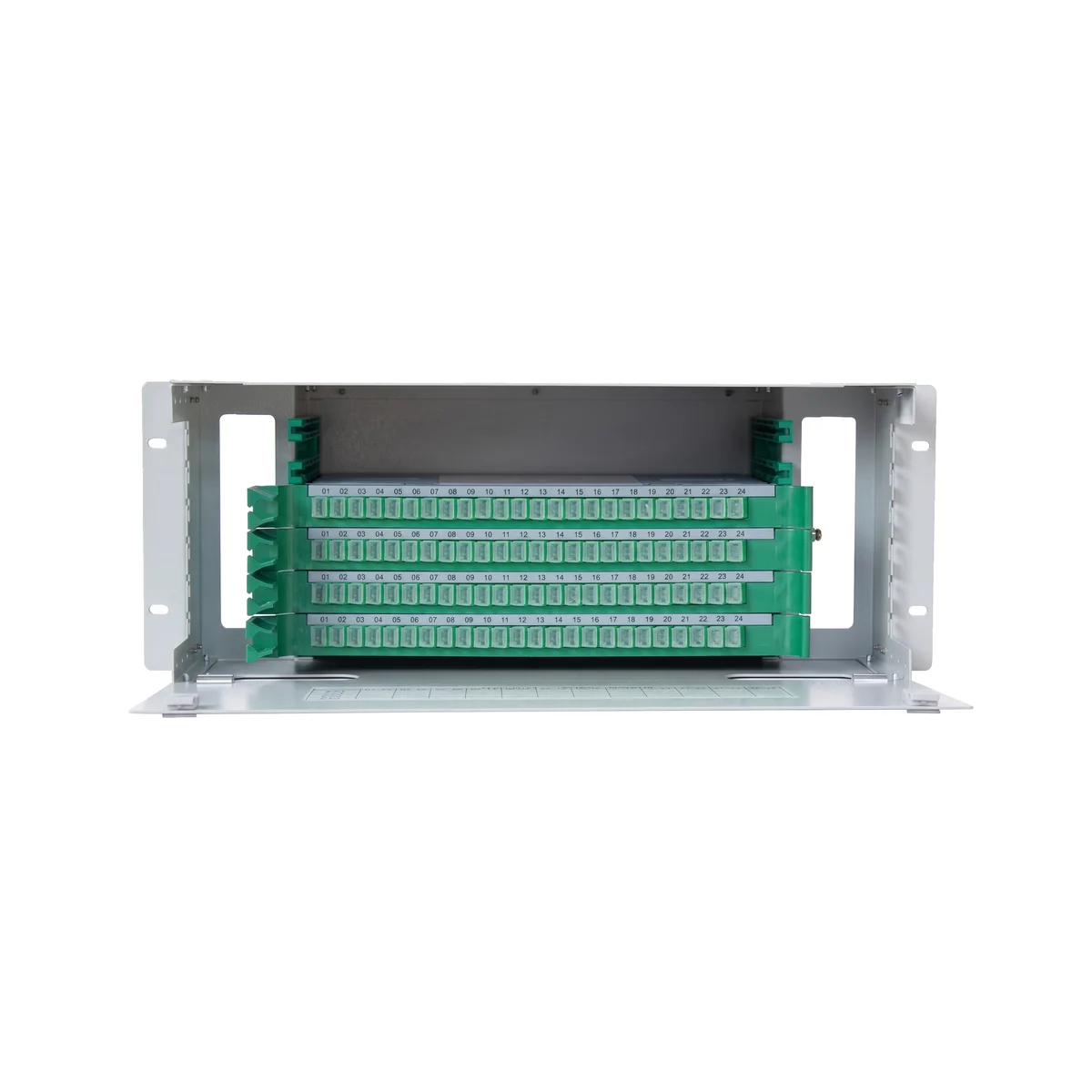

JODF-U1 Optical Patch Panel

Price shown is for reference only. Contact us for accurate quotation.

JODF-U1 Optical Patch Panel

Product Snapshot

Capacity
12~144 Ports
Shell Material
Cold rolled steel
Protection Class
IP20
Mounting Type
Rack mounting
Dimensions
Various sizes (1U-6U)
Working Temp
-5~40℃
MOQ
From 1 piece

Get Factory Pricing

Product Overview

The JODF-U1 Optical Patch Panel is designed for reliable fiber optic distribution in fiber patch panel applications. Fiber optic patch panel, 12–144 ports, standard design. 19-inch rack mount, cold rolled steel. FC/SC/LC adapters. Factory direct, OEM/ODM, MOQ from 1.

The JODF-U1 is a modular rack-mount fiber patch panel engineered for structured cabling in data centers, telecom rooms, and enterprise network racks. With a flexible capacity of 12 to 144 ports across 1U to 6U heights, it scales from small breakouts to dense fiber aggregation without changing rack architecture.

Built from cold-rolled steel with standard 19-inch rack dimensions, the panel provides independent wiring channels that keep patch cords, pigtails, and trunk cables separated and organized. The modular components snap in and out, allowing technicians to add or reconfigure capacity as network demand grows while maintaining clean, traceable fiber routing.

Each unit is 100% factory-tested. Front and rear access points and clearly separated routing lanes make the JODF-U1 easy to maintain, and custom port counts and adapter configurations are available for OEM and volume orders.

Features & Benefits

  • Modular components
  • Independent wiring channels for easy maintenance
  • Standard 19-inch rack installation
  • The capacity can be customized according to actual needs

Related Products

JODF-U2 Optical Patch Panel

JODF-U2 Optical Patch Panel

Fiber optic patch panel, 12–64 ports, rotary type. 19-inch rack mount, cold rolled steel. FC/SC/LC adapters. Factory direct, OEM/ODM, MOQ from 1.
JODF-U3A Optical Patch Panel

JODF-U3A Optical Patch Panel

Fiber optic patch panel, 24–96 ports, sliding type. 19-inch rack mount, cold rolled steel. FC/SC/LC adapters. Factory direct, OEM/ODM, MOQ from 1.
JODF-U3B Optical Patch Panel

JODF-U3B Optical Patch Panel

Sliding fiber optic patch panel with fiber management options. 19-inch rack, cold rolled steel. FC/SC/LC adapters. Factory direct, OEM/ODM, MOQ from 1.
JODF-U4 Optical Patch Panel

JODF-U4 Optical Patch Panel

24-port flip-cover fiber optic patch panel. 19-inch rack mount, cold rolled steel. FC/SC/LC adapters. Factory direct, OEM/ODM, MOQ from 1.

Frequently Asked Questions

How many ports does the JODF-U1 support?
The JODF-U1 supports 12 to 144 ports depending on height (1U to 6U). Because it is modular, you can start small and add adapter modules or cassettes to scale capacity in place as network demand grows.
Why are independent wiring channels important?
Separate wiring channels keep patch cords, pigtails, and trunk cables organized and physically separated. This reduces congestion, makes fiber runs traceable, and speeds up troubleshooting and maintenance in high-density racks.
Is it 19-inch rack compatible?
Yes. The JODF-U1 is built to standard 19-inch rack dimensions and installs directly into standard equipment racks across 1U to 6U configurations.
What connectors are available?
SC, LC, and FC adapters are available in UPC or APC polish. Custom adapter configurations and port counts can be specified for OEM and volume orders.
Can the capacity be changed after installation?
Yes. The modular design lets you add, remove, or replace adapter modules without replacing the whole panel, so capacity can be reconfigured to match changing network demand.
What is the lead time for JODF-U1 Optical Patch Panel?
Sample orders typically ship within 7-15 days. Bulk orders usually take 15-30 days depending on quantity. For urgent requirements, please contact us directly.
Is OEM branding available for JODF-U1 Optical Patch Panel?
Yes, OEM and ODM services are standard. We can print your logo, use custom colors, and adjust specifications to meet your requirements.
What payment methods do you accept?
We accept T/T, L/C, and PayPal (for samples). Standard terms are 30% deposit, 70% balance before shipment.
How do you ensure quality?
All products undergo strict QC before shipping. We offer video inspection service so you can verify quality before shipment.
