JODF-U2 Optical Patch Panel

Price shown is for reference only. Contact us for accurate quotation.

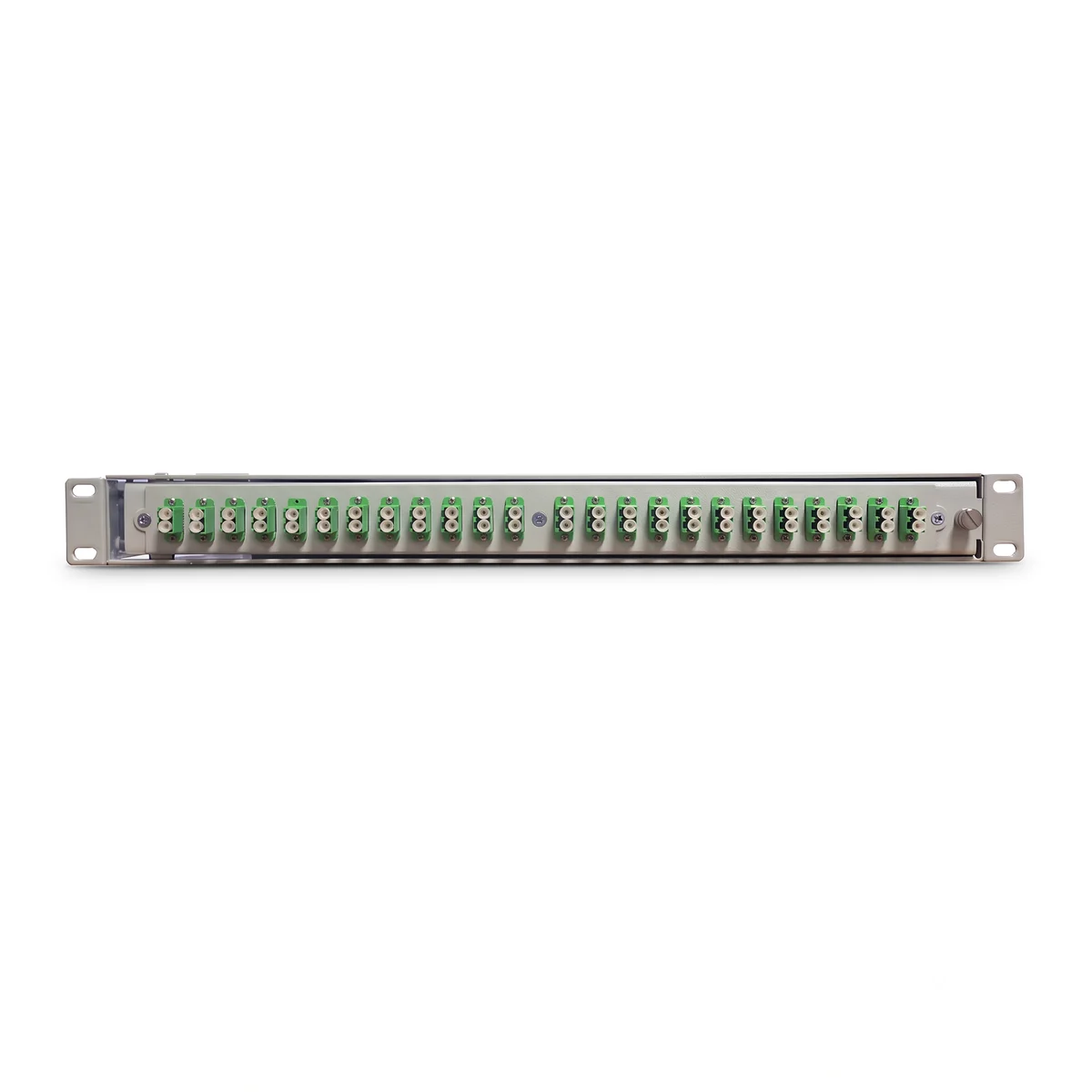

JODF-U2 Optical Patch Panel

Product Snapshot

Capacity
12~64 Ports
Shell Material
Cold rolled steel
Protection Class
IP20
Mounting Type
Rack mounting
Dimensions
43.5*482*250mm (1U) / 66*482*250mm
Working Temp
-5~40℃
MOQ
From 1 piece

Get Factory Pricing

Product Overview

The JODF-U2 Optical Patch Panel is designed for reliable fiber optic distribution in fiber patch panel applications. Fiber optic patch panel, 12–64 ports, rotary type. 19-inch rack mount, cold rolled steel. FC/SC/LC adapters. Factory direct, OEM/ODM, MOQ from 1.

The JODF-U2 is a rotary-design fiber patch panel that prioritizes installation speed and ease of operation in rack environments. Supporting 12 to 64 ports in a compact 1U or 2U body, it is designed for high-turnover patch positions where adapters are connected and reconnected frequently.

The cold-rolled-steel construction meets standard 19-inch rack dimensions (43.5×482×250mm in 1U). Its standout rotary mechanism swings the patch area outward for direct front access to adapters and pigtails, eliminating awkward reach-in work and speeding up every add, move, or change.

Modular components keep ports configurable, and the rotary design protects fibers from sharp bends during handling. It is suited to data center patching floors, network operation centers, and any rack where frequent patching happens.

Features & Benefits

  • Modular components
  • Rotary design for easy to operate
  • Standard 19-inch rack installation
  • The capacity can be customized according to actual needs

Related Products

JODF-U1 Optical Patch Panel

JODF-U1 Optical Patch Panel

Fiber optic patch panel, 12–144 ports, standard design. 19-inch rack mount, cold rolled steel. FC/SC/LC adapters. Factory direct, OEM/ODM, MOQ from 1.
JODF-U3A Optical Patch Panel

JODF-U3A Optical Patch Panel

Fiber optic patch panel, 24–96 ports, sliding type. 19-inch rack mount, cold rolled steel. FC/SC/LC adapters. Factory direct, OEM/ODM, MOQ from 1.
JODF-U3B Optical Patch Panel

JODF-U3B Optical Patch Panel

Sliding fiber optic patch panel with fiber management options. 19-inch rack, cold rolled steel. FC/SC/LC adapters. Factory direct, OEM/ODM, MOQ from 1.
JODF-U4 Optical Patch Panel

JODF-U4 Optical Patch Panel

24-port flip-cover fiber optic patch panel. 19-inch rack mount, cold rolled steel. FC/SC/LC adapters. Factory direct, OEM/ODM, MOQ from 1.

Frequently Asked Questions

How many ports does the JODF-U2 support?
The JODF-U2 supports 12 to 64 ports in a compact body (43.5×482×250mm in 1U). It is designed for high-turnover patch positions where adapters are frequently connected and reconnected.
What does the rotary design do?
The rotary mechanism swings the patch area outward so technicians reach adapters and pigtails directly from the front, without awkward reach-in. This speeds up every add, move, or change and reduces fiber strain during handling.
Is it 19-inch rack compatible?
Yes. The JODF-U2 mounts in standard 19-inch racks at 1U or 2U height, and the cold-rolled-steel body meets standard rack dimensions.
What connectors are available?
SC, LC, and FC adapters in UPC or APC polish. Custom adapter configurations and port counts are available for OEM and volume orders.
Why choose rotary over sliding design?
A rotary design is best for very frequent adapter access with minimal arc — you pull the patch area out to reach it directly. Sliding designs (like JODF-U3/U4) keep the panel in the rack plane and suit moderate-frequency access. Choose rotary for the highest-turnover patch positions.
What is the lead time for JODF-U2 Optical Patch Panel?
Sample orders typically ship within 7-15 days. Bulk orders usually take 15-30 days depending on quantity. For urgent requirements, please contact us directly.
Is OEM branding available for JODF-U2 Optical Patch Panel?
Yes, OEM and ODM services are standard. We can print your logo, use custom colors, and adjust specifications to meet your requirements.
What payment methods do you accept?
We accept T/T, L/C, and PayPal (for samples). Standard terms are 30% deposit, 70% balance before shipment.
How do you ensure quality?
All products undergo strict QC before shipping. We offer video inspection service so you can verify quality before shipment.
