JODF-U3B Optical Patch Panel

Price shown is for reference only. Contact us for accurate quotation.

JODF-U3B Optical Patch Panel

Product Snapshot

Capacity
Various
Shell Material
Cold rolled steel
Protection Class
IP20
Mounting Type
Rack mounting
Dimensions
43*482*278mm (1U) / 87*482*278mm (2U) / 130*482*278mm (3U)
Working Temp
-5~40℃
MOQ
From 1 piece

Get Factory Pricing

Product Overview

The JODF-U3B Optical Patch Panel is designed for reliable fiber optic distribution in fiber patch panel applications. Sliding fiber optic patch panel with fiber management options. 19-inch rack, cold rolled steel. FC/SC/LC adapters. Factory direct, OEM/ODM, MOQ from 1.

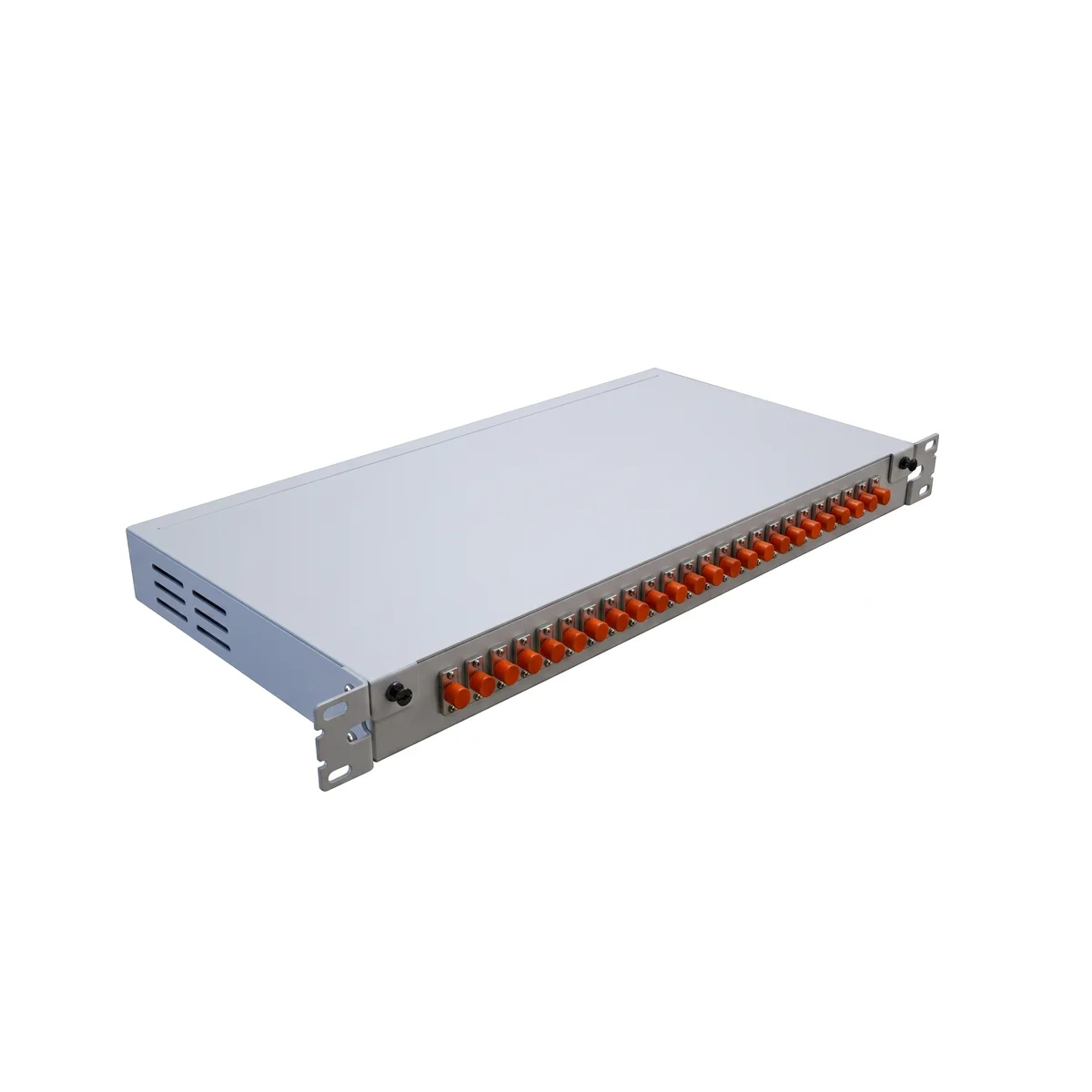

The JODF-U4 is a sliding-design fiber patch panel optimized for space-efficient rack termination where depth and footprint are limited. Supporting 24 ports (and configurable variations) in a compact 1U to 3U range (43×482×278mm in 1U), it delivers organized fiber management without a bulky rack footprint.

The cold-rolled-steel construction meets standard 19-inch rack dimensions. Its sliding drawer pulls forward for direct access to adapters and patch cords, keeping the panel serviceable even in shallow or densely packed racks.

Independent wiring channels separate patch cords from pigtail and trunk fibers. The JODF-U4 is a dependable choice for telecom closets, access switches, and edge racks where operators want clean termination in tight quarters.

Features & Benefits

  • Modular components
  • Sliding design for easy to operate
  • Standard 19-inch rack installation
  • The capacity can be customized according to actual needs

Related Products

JODF-U1 Optical Patch Panel

JODF-U1 Optical Patch Panel

Fiber optic patch panel, 12–144 ports, standard design. 19-inch rack mount, cold rolled steel. FC/SC/LC adapters. Factory direct, OEM/ODM, MOQ from 1.
JODF-U2 Optical Patch Panel

JODF-U2 Optical Patch Panel

Fiber optic patch panel, 12–64 ports, rotary type. 19-inch rack mount, cold rolled steel. FC/SC/LC adapters. Factory direct, OEM/ODM, MOQ from 1.
JODF-U3A Optical Patch Panel

JODF-U3A Optical Patch Panel

Fiber optic patch panel, 24–96 ports, sliding type. 19-inch rack mount, cold rolled steel. FC/SC/LC adapters. Factory direct, OEM/ODM, MOQ from 1.
JODF-U4 Optical Patch Panel

JODF-U4 Optical Patch Panel

24-port flip-cover fiber optic patch panel. 19-inch rack mount, cold rolled steel. FC/SC/LC adapters. Factory direct, OEM/ODM, MOQ from 1.

Frequently Asked Questions

How many ports does the JODF-U4 support?
The JODF-U4 supports 24 ports by default with series variations for different configurations, in a compact 1U to 3U body (43×482×278mm in 1U). It is optimized for space-efficient rack termination.
How is it different from the JODF-U3?
Both use a sliding design, but the JODF-U4 uses a slimmer 278mm-depth body optimized for shallow or densely packed racks, at 24-port default capacity, versus the JODF-U3's 350mm-depth body and up to 96-port capacity.
Is it 19-inch rack compatible?
Yes. The JODF-U4 fits standard 19-inch racks at 1U, 2U, or 3U heights, using cold-rolled-steel construction.
What connectors are available?
SC, LC, and FC adapters in UPC or APC polish. Custom configurations and port counts are available for OEM and volume orders.
Does the compact size compromise maintenance?
No. The sliding drawer opens for direct front access to adapters and patch cords, so termination and changes stay easy even in a shallow or tightly packed rack.
What is the lead time for JODF-U3B Optical Patch Panel?
Sample orders typically ship within 7-15 days. Bulk orders usually take 15-30 days depending on quantity. For urgent requirements, please contact us directly.
Is OEM branding available for JODF-U3B Optical Patch Panel?
Yes, OEM and ODM services are standard. We can print your logo, use custom colors, and adjust specifications to meet your requirements.
What payment methods do you accept?
We accept T/T, L/C, and PayPal (for samples). Standard terms are 30% deposit, 70% balance before shipment.
How do you ensure quality?
All products undergo strict QC before shipping. We offer video inspection service so you can verify quality before shipment.
